Fresh Tag 1 USB Temperature Data Logger
A pre-programmed, single-use USB temperature data logger for documenting temperature-sensitive shipments. It records throughout the journey and generates a secure PDF or CSV report when connected to a computer.
Introduction
The Fresh Tag 1 USB Temperature Data Logger is designed for single-use monitoring of temperature-sensitive products during transport and storage. Its compact, lightweight format allows it to travel inside cartons, insulated containers, refrigerated vehicles and other cold-chain packaging without taking up unnecessary space.
Each logger is factory pre-programmed and pre-calibrated according to the required trip profile. The user simply presses the start button, places the device with the shipment and allows it to record automatically. At destination, the integrated USB connector can be inserted directly into a Windows or Mac computer to generate a secure report without installing specialist software or using a separate reader.
Different trip-duration options are available for short and extended distribution cycles, including 7, 15, 30, 60, 90, 120, 180, 240 and 300 days. With a three-year shelf life, a wide measuring range and storage for up to 129,600 readings, Fresh Tag 1 supports reliable quality control across routine and long-distance cold-chain operations.
Key Features and Benefits
Three-year shelf life
The logger can be stored for up to three years before use, supporting efficient stock planning and readiness for future shipments.
High measurement accuracy
Provides ±0.5°C full-scale accuracy across the supported -30°C to +70°C range for dependable cold-chain records.

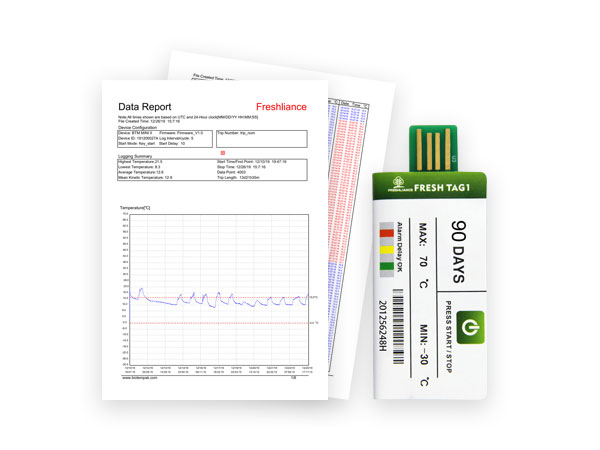

Automatic USB report generation
Connect the logger directly to a computer to generate PDF, CSV or combined reports without additional software, cables or readers.
Factory prepared for use
Alarm points, recording interval, start delay and other parameters can be configured and calibrated before delivery.

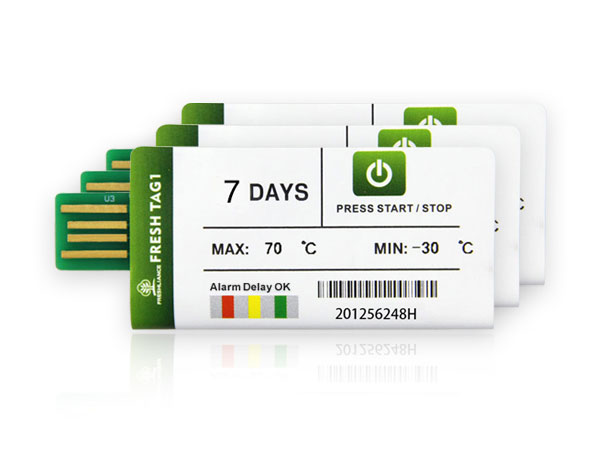

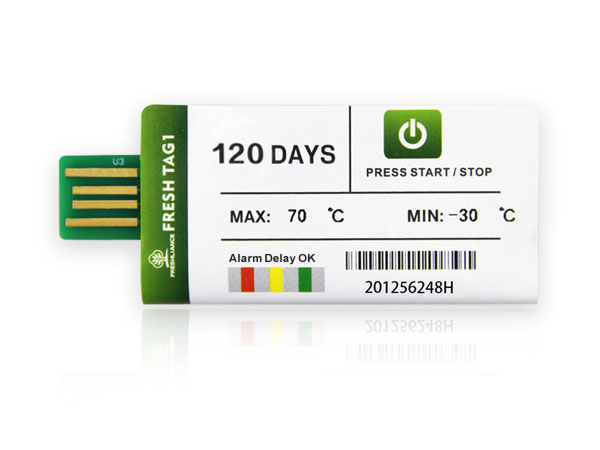

Long recording duration
Supports trip profiles from 7 days up to 300 days, making one product family suitable for many logistics requirements.
Large memory capacity
Stores up to 129,600 temperature readings for detailed analysis of both short journeys and extended distribution routes.

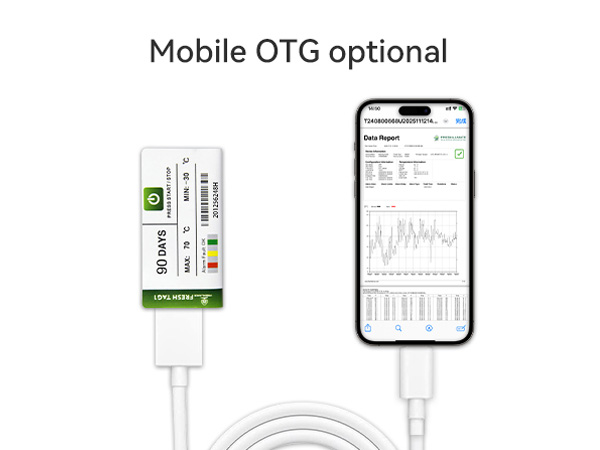

Optional mobile access
Optional OTG or NFC functionality allows compatible mobile devices to access reports where computer access is limited.
Food-grade, IP67 protection
The protective packing is suitable for cold-chain use and offers strong resistance to water and dust during handling and transport.
How the Product Is Used
Applications
- Pharmaceuticals, vaccines and medical supplies
- Fresh, chilled and frozen food
- Meat, poultry, seafood and dairy products
- Fruit, vegetables and flowers
- Refrigerated trucks and last-mile delivery
- Air, sea and road freight
- Cold rooms, warehouses and distribution centres
- Quality investigations and shipment acceptance
Available configurations may vary by recording duration, alarm limits and reporting requirements. Contact Gee Gee Data Monitoring System EMS (Pty) Ltd to confirm the correct Fresh Tag 1 configuration for your shipment.
Fresh Tag 1 Technical Specifications
| Model | Fresh Tag 1 | Type of Use | Single use |
|---|---|---|---|
| Shelf Life | 3 years | Battery Life | Maximum 300 days |
| Temperature Range | -30°C to +70°C | Temperature Accuracy | ±0.5°C full scale |
| Resolution | 0.1°C | Memory Capacity | Maximum 129,600 readings |
| Logging Interval | Customisable | Start Delay | Customisable |
| Display | LED status indicator | Report Format | PDF, CSV, or PDF + CSV |
| Alarm Points | Customisable | Battery | 3.0 V CR2032 |
| Connection | USB; optional NFC/OTG configuration | Compatible Operating Systems | Windows and macOS |
| Weight | 11 g | Dimensions | 67 × 27 × 5 mm |
| Protection Grade | IP67 | Certificates | CE, RoHS and EN 12830 |
| Available Recording Durations | 7, 15, 30, 60, 90, 120, 180, 240 and 300 days | ||
Download the product brochure or contact Gee Gee Data Monitoring System EMS (Pty) Ltd for the latest datasheet, configuration options, calibration information and availability.
Download Product Brochure Request Datasheet
