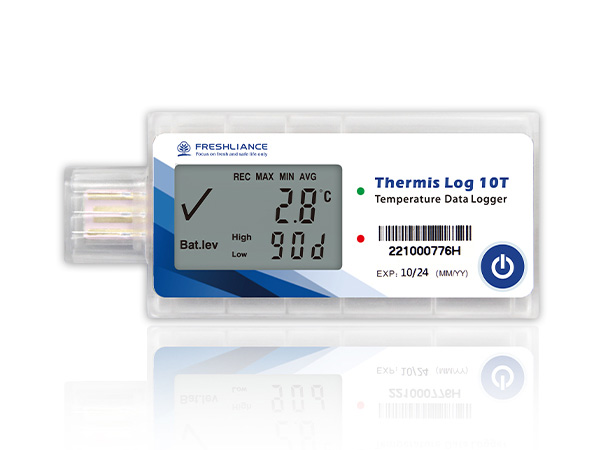

Thermis Log 10T Single-use Temperature Logger
High-accuracy monitoring with visible trip statistics and automatic reports
- LCD + LED indication
- ±0.3°C accuracy
- -30°C to +70°C
- Up to 65,000 readings
- Automatic PDF/CSV
- Minimum order: 50 units
Thermis Log 10T combines high-accuracy single-use temperature monitoring with a large LCD that makes important shipment information visible before the device is connected to a computer. It is designed for pharmaceutical, healthcare and life-science logistics where both immediate status and complete electronic records are required.
Introduction
Thermis Log 10T combines high-accuracy single-use temperature monitoring with a large LCD that makes important shipment information visible before the device is connected to a computer. It is designed for pharmaceutical, healthcare and life-science logistics where both immediate status and complete electronic records are required.
During the trip, the screen can present current temperature and key statistics while LED indications communicate operating and alarm status. Parameters such as the recording interval, delay and alarm thresholds can be configured before activation to match the handling requirements of the product.

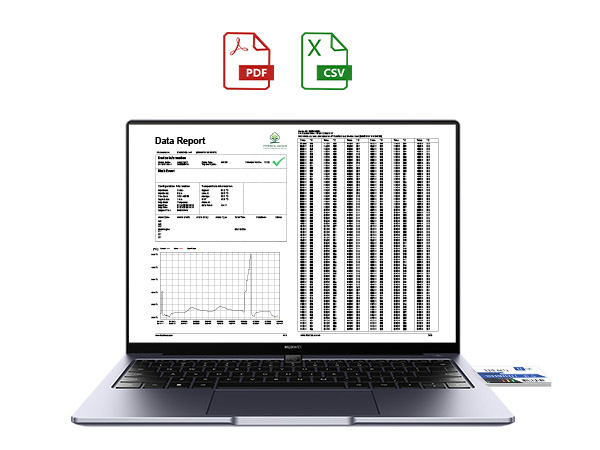

At destination, the built-in USB interface generates irreversible PDF and CSV reports automatically. This supports rapid receiving decisions, investigation of excursions and secure archiving of transport records without installing specialist software.
Key Features and Benefits

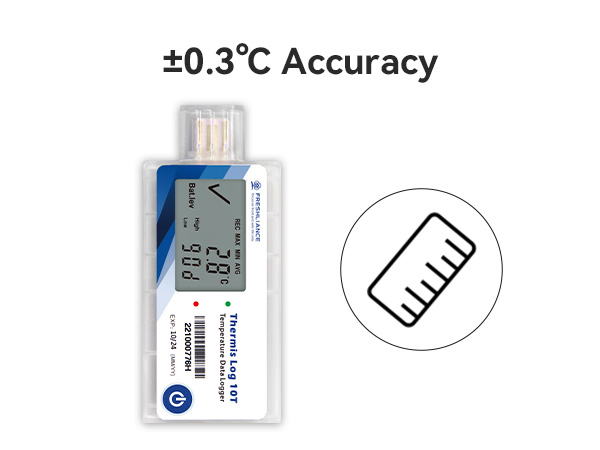

High-accuracy sensor
Temperature accuracy up to ±0.3°C supports sensitive pharmaceutical distribution.
Large LCD visibility
Provides real-time temperature, alarm information and trip statistics at a glance.
Automatic report generation
Creates PDF and CSV reports after connection to a computer, with no reader required.
Configurable alarm limits
Allows the shipment profile to be prepared before the logger is started.
Long operating period
Designed for journeys and storage periods of up to 120 days, depending on configuration.
Water-resistant packaging
IP65 protection supports use in demanding distribution and storage environments.
How the Product Is Used
Typical Applications

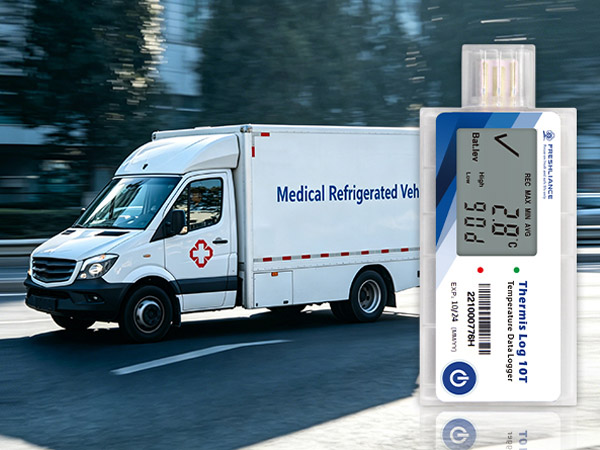

- Pharmaceutical distribution
- Vaccines and biological products
- Clinical trial logistics
- Cold rooms and medical cabinets
- Healthcare distribution centres
- Temperature-sensitive food ingredients
Product configuration, calibration options and supplied accessories may vary. Contact Gee Gee Data Monitoring System EMS (Pty) Ltd for the latest datasheet and the correct model for your application.
Thermis Log 10T Specifications
| Model | Thermis Log 10T |
|---|---|
| Type of Use | Single use |
| Temperature Range | -30°C to +70°C |
| Temperature Accuracy | ±0.3°C typical |
| Logging Interval | 1 minute to 24 hours, configurable |
| Start Delay | 0 minutes to 24 hours, configurable |
| Memory Capacity | Up to 65,000 readings |
| Display | LCD and LED indicators |
| Alarm Points | Up to 6 configurable alarm points |
| Marks | Up to 9 event marks |
| Connection | Integrated USB; NFC optional by configuration |
| Report Format | Encrypted PDF and CSV automatically generated |
| Battery | CR2032 lithium battery |
| Battery Life | Up to 120 days, depending on configuration |
| Protection Grade | IP65 |
| Dimensions | 94 mm × 41 mm × 8 mm |
| Weight | 27.5 g |
| Compatible O/S | Windows and macOS |
| Certificates | CE, RoHS, EN 12830 |
Thermis Tools Software

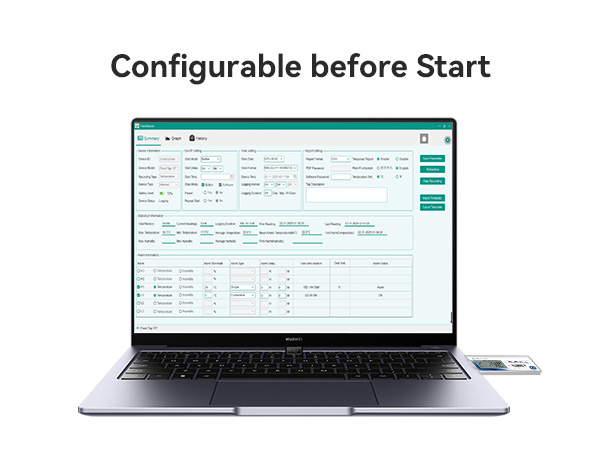

Thermis Tools is PC software for preparing, reading and analysing Thermis USB temperature data loggers. Once the Thermis Log 10T is connected by USB, the software automatically identifies the device and displays its device ID, battery status, recording interval, start mode, alarm profile and current configuration.
Before deployment, users can configure the logging interval, start delay, temperature alarm limits, time zone and report settings. After the trip, recorded values can be viewed as graphs and detailed tables, with maximum, minimum, average and MKT statistics available for quality review.
Device configuration
Set logging interval, start delay, alarm thresholds and report preferences before activation.
Automatic USB detection
The software recognises the connected logger and displays its key operating information.
Temperature analysis
Review recorded temperature trends, excursion events and summary statistics on screen.
Flexible reports
Export or archive data in PDF, CSV, TXT or PNG formats and compare multiple loggers when required.
