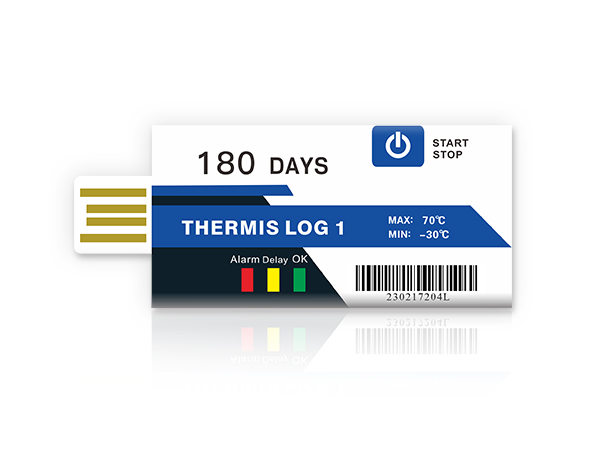

Thermis Log 1 Single-use Temperature Logger
Thermis Log 1 is a compact, single-use USB temperature recorder for reliable cold-chain monitoring. It combines high measurement accuracy, long-duration recording and automatic report generation for transport, storage and quality-control applications.
Introduction
Thermis Log 1 is a factory-prepared, single-use USB temperature recorder developed for monitoring temperature-sensitive goods throughout transportation and storage. Its slim card-style design makes it easy to place inside cartons, insulated boxes, refrigerated vehicles, medical coolers and laboratory shipments without taking up valuable packing space.
Once activated, the logger measures and stores temperature at the configured interval for the selected trip duration. The integrated USB connector allows the receiving team to connect the device directly to a Windows or Mac computer and generate a secure PDF, CSV or combined report without a separate reader or specialised download equipment.
With temperature accuracy of up to ±0.3°C, a three-year shelf life, capacity for as many as 129,600 readings and recording programmes available for journeys of up to 180 days, Thermis Log 1 supports detailed cold-chain verification. It is suitable for pharmaceutical distribution, vaccines, biological materials, clinical samples, food, fresh produce and other products requiring documented temperature control.
Key Features and Benefits

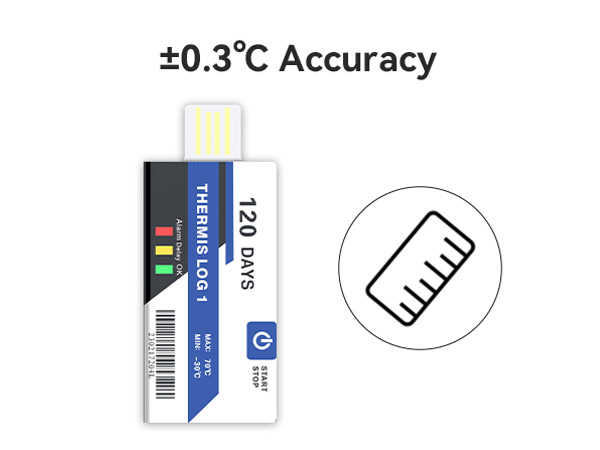

High accuracy
Accuracy up to ±0.3°C helps provide dependable evidence for pharmaceutical, laboratory and other demanding cold-chain operations.
Factory prepared
Recording interval, alarm limits, start delay and journey duration can be programmed before supply, allowing simple press-and-start operation.
Long recording duration
Multiple trip-duration options are available, including 7, 15, 30, 60, 90, 120 and 180 days.
Large memory
Stores up to 129,600 readings, providing a detailed temperature history for extended shipments and storage periods.

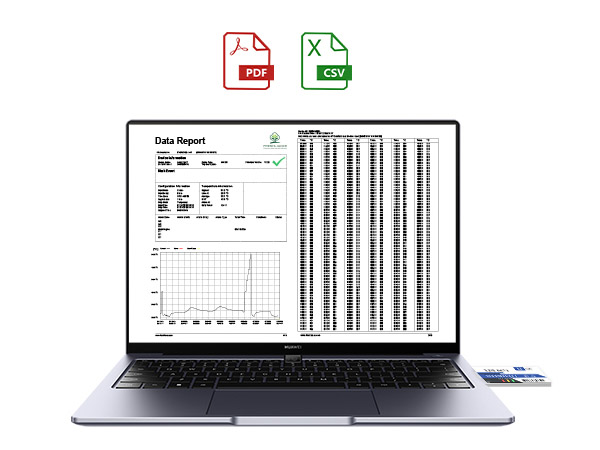

Automatic reports
Connect the logger to a computer to create PDF, CSV or combined PDF-and-CSV reports without a docking station.

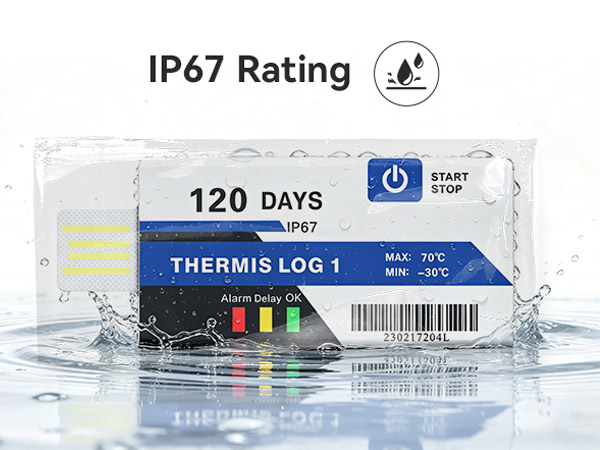

IP67 protection
The sealed design offers strong resistance to water and dust, supporting use in wet, chilled and demanding logistics environments.
Visual status indication
LED indicators provide a quick trip-status reference, while configurable alarm thresholds help highlight excursions.
Compact and lightweight
At approximately 11 g, the logger can be placed inside small packages, medicine boxes, food cartons and sample containers.
How the Product Is Used
Applications
- Vaccines and temperature-sensitive medicines
- Pharmaceutical and biological products

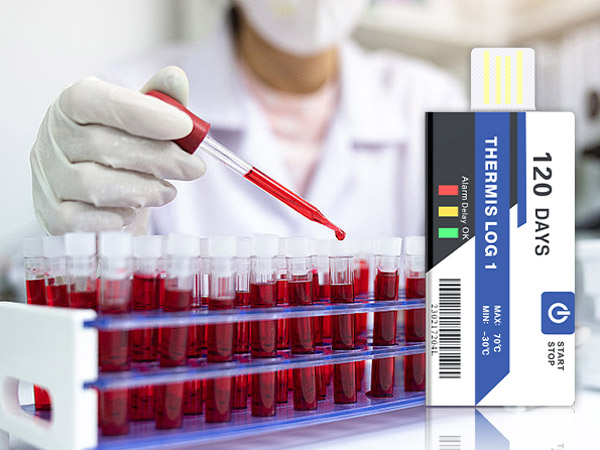

- Blood, laboratory and diagnostic samples

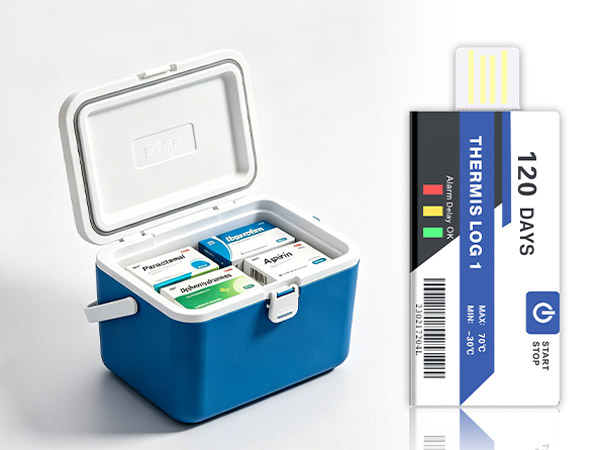

- Clinical-trial materials and medical coolers

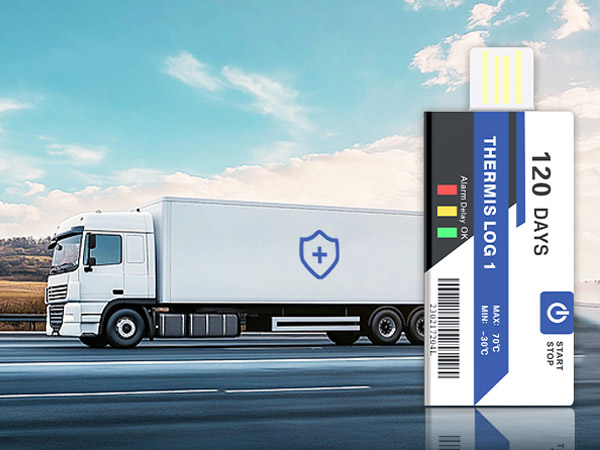

- Refrigerated trucks, containers and air cargo
- Fresh food, meat, seafood and dairy products
- Fruit, vegetables, flowers and other perishables
- Cold rooms, refrigerators and storage cabinets
Available settings, calibration documentation and supplied accessories may vary by order. Confirm the required programme and compliance documents with Gee Gee Data Monitoring System EMS (Pty) Ltd before purchasing.
Thermis Log 1 Technical Specifications
| Model | Thermis Log 1 |
|---|---|
| Type of Use | Single use |
| Shelf Life | 3 years |
| Maximum Recording Duration | Up to 180 days, depending on configuration |
| Temperature Range | -30°C to +70°C |
| Temperature Accuracy | ±0.3°C full scale |
| Resolution | 0.1°C |
| Memory Capacity | Up to 129,600 readings |
| Logging Interval | Configurable |
| Start Delay | Configurable |
| Display / Status | LED status indicator |
| Report Formats | PDF, CSV, or PDF and CSV |
| Alarm Points | Configurable |
| Connection | Integrated USB; NFC optional on selected configurations |
| Compatible Operating Systems | Windows and macOS |
| Battery | 3.0 V CR2032 |
| Protection Grade | IP67 |
| Weight | Approximately 11 g |
| Dimensions | Approximately 67 × 27 × 5 mm |
| Certificates / Standards | CE, RoHS and EN 12830 |
Download the product PDF or contact Gee Gee Data Monitoring System EMS (Pty) Ltd for the latest datasheet, calibration options and availability.
